Body Fittings

We have sourced modern laminated and heated glass windscreens and are currently investigating re-manufacture of rear screens (hatch).

Heated screens carry a warranty of 90 days on the element. Water is the biggest problem for heated glass. It is very important that no water can get to the edge of the glass or the element will start to fail very quickly. All rubber fit screens must be sealed with the correct grade of non-setting windscreen rubber fit sealer, such as INDASA. If this in not done the warranty will be void. For wiring diagram click here.

Screens can be posted within UK at an extra cost of around £44. For shipping overseas please ask. We may refer you to our supplier.

Door cards and rear trim panels are now available in an IMProved plastic material that will not warp when it gets damp. You can cover them with your favourite vinyl or buy the kits from Lesley Smith (see below). Rear door pocket base and roof trim is available in the same material.

Note: Re-conditioned items carry a replacement warranty for six months from time of sale. If you are not happy with what you have received, please contact us immediately.

L72879A	wiper drive pinion and spindle (wheelbox)	2	30.00 *
	includes spacer, seal and nut
P.45645	nut for spindle	10	2.00 *
5063408	9122106 seal spindle outer silicone 5/8”	18	1.00
	new IMProved! also available in blue
7080064	spacer spindle rubber 5/8” x1-3/8”	4	1.00
	wiper drive tube (car set)	1	20.00
	trunnion+nut wiper rack tube	1
L743235	wiper drive rack 43-1/2”	1	13.00 *
	strap and pad fitting kit	1	12.00 *
7200006	bolt bumper chrome (set4)	on order	10.00 *
	mirror head larger, slight tarnish	1	10.00
	O-ring RR hatch lock	20	10p
key1	key RL, RM or FS please state reqd.	93	3.00
7080234	rivet chrome 1/4 vent light hinge	22	30p
7096059-60	1/4 vent inner frame LH-RH w- glass, handle and pivot	3	50.00
	door riser glass LH-RH	2	15.00
7096069	ash tray early Super-Sport	2	12.00
7096079	roll pin 1/4” door hinge w- washers (set4)	3	6.00
7200005	bumper iron bkt rear	1	5.00
	screw 5/16 UNF x1” bumper bkt to body (ss, pair)	7	2.00 *
7200009	cage for captive nut washer jet w- nut	1	2.00
7200036	square nut for washer jet	22	60p *
7200119	ash tray early Imp	9	12.00
7200170	T-piece w-screen washer	5	2.00 *
7200220	parcel tray-shelf MkI-II re-manufactured	21	125.00
7200295	rubber buffer int mirror stem to w-screen	81	1.50
9119050	rubber buffer engine lid top (pair)	12	6.00
2216538	rubber buffer engine lid bottom edge (pair)	36	4.00
7200448	no.8 screw cs handle to hatch frame	16
	wing nut 3/16 UNF for dash pads MkI-II (ss)	6	1.00 *
7202008	check strap door re-furbished	to order	18.00
7204000	bonnet hinge (pair)	1	60.00 *
7204004-5	gasket bonnet hinge (set4)	11	5.00
7204146-7	rear hatch stay re-conditioned (pair)	ask	115.00
7204019	gasket door handle (set4)	15	5.00
7207463-4	door interior remote and lock early, RH-LH	8	25.00
7204059-9	door striker early, LH only	4	12.00
7204071	waist seal furry door to glass	28	7.00 *
7204072	waist seal door outer rain strip	30	18.50 *
7204109	screw chrome for seat strap	4	3.00
7208981	rubber diaphragm seat 15-1/2” with hooks	to order	24.00 *
7208981	rubber diaphragm seat 14-1/2” x13” with hooks	to order	26.00 *
7204111	return spring bonnet latch	13	2.00
7204117	rubber retainer for bonnet stay	15	5.00
	also fits Van oil filler lid
614107	plastic retainer for bonnet stay (late)	1	7.00 *
	valve-filter one way for washer bag	2	4.00 *
7204127	pin 1/8” x5/8” int. door handle	120	15p *
7204194-5	seal 1/4 vent light saloon, new re-made (pair)	3	120.00
7209216-7	seal 1/4 vent light coupe, new re-made (pair)	9	150.00
7205007/ 174	clip int. light cable to w-screen header	30	30p
7205018	washer (metal) sealing rear hatch lock assy	10	55p
7205274	handle exterior door LH	3	37.50
7205275	handle exterior door RH w- key	6	55.00
7207354	seal rubber w-screen saloon	4	36.00 *
7205266	filler strip w-screen chrome effect	6	9.00
7204135	closing finisher w-screen filler	31	2.00
7204139	striker plate RR hatch lock	23	2.00
7205250	clip rear body finisher	25	90p *
7207394	handle winder late	7	10.00
	trim clip upholstery	12	30p
7200761	seal 7” h-lamp re-made (pair)	15	30.00
9143308	rivet expanding h-lamp seal or glove box	150	40p
7209279	stubber-spring ash tray late	1	1.00
7210526	O-ring seal washer jet chrome finisher	26	50p *
7210687	seal rubber washer jet outer	32	15p *
7205198-9	door card plastic non-warp early	2	15.00
7205198-9	door card plastic non-warp late	8	15.00
7205200-1	rear side trim card plastic non-warp	8	10.00
2284922	header trim card plastic saloon RR	11	10.00
7209716-7	cant rail trim card coupe	10	12.00
7209230/ 69	header trim card coupe FF-RR	7	9.00
	lower rear trim card coupe	ask	10.00
	cover cards with own vinyl or other finish or see below
7205135-6	rear door pocket base plastic	2	4.00
U71300	wiper arm Tex adjustable 5.2mm (pair)	3	36.00 *
U71353	wiper arm Tex 5.2mm (pair)	1	36.00 *
B05012	wiper blade Tex 5.2mm 12” (pair)	4	22.00 *
	wiper blades 12" (odd one)	2	10.00
	wiper blades 12" std saloon black (pair)	5	8.00
	wiper blades 12" black (odd one)	3	3.00
U76300	wiper arm Tex LHD adjustable 7.2mm (pair)	1	36.00 *
U77300	wiper arm Tex adjustable 7.2mm (pair)	5	36.00 *
U77367	wiper arm Tex 7.2mm (pair)	9	36.00 *
B12312	wiper blade Tex 7.2mm 12” (pair)		22.00 *
Tudor12	wiper blade 7.2mm 12” (pair)	3	25.00 *
B05013	wiper blade Tex 13” 5.2mm (pair)	6	25.00
B12313	wiper blade Tex 7.2mm 13” (pair)	on order	25.00 *
Arman13	wiper blade Arman 7.2mm 13” (pair)	1	25.00
Elta13	wiper blade Elta 7.2mm 13” (pair)	2	25.00
	wiper blades 13" (odd one)	4	10.00
	wiper blade refill pack Trico 13” (pair)	9	5.00
B12814	wiper blade Tex 7.2mm 14”	1	10.00 *
7205033	handle engine lid w-escutcheon	ask	20.00
7202530	bonnet lock assy compete	1	ask
9003045	screw 1/4 UNF x1/2" plate under floor (ss set8)	2	3.00 *
	bolt 1/4 UNF x1-1/4”	8	80p *
7209079	glove box lock and key MkIII	2	20.00
7209716	check strap glove box MkIII IMProved w- rivets	on order	3.00
7211386	rear hatch seal inner to frame	11	23.00
7204088	rear hatch seal to aperture	8	22.00

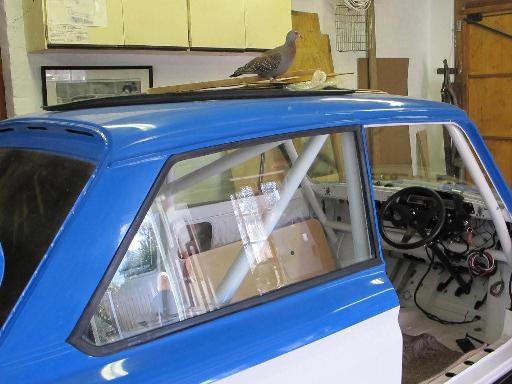

7205022-3	rear side window rubber RSWR seal saloon (pair)	4	95.00
7204220	domed nut rear hatch stay	55	1.00
71803218	door aperture seal (3.9m per side)	3	18.00
7204126	seal bonnet (1.6m)	12	10.00
7206686-	window channel flock seal (set3 per door)	9	14.00
7210564	bumper blade RR sport type	3	125.00
7105000	h-lamp black bowl and yoke LH-RH (pair)	3	45.00
7200013	h-lamp mounting yoke LH only	6	5.00
7200015	h-lamp mounting bkt stop MkI	1	1.50
7208125	h-lamp yoke pivot	1	1.50
	door hinge pin (set 4), 1/4”, 6.5mm or 6.75mm	1	19.50
7210656-	windscreen toughened original	1	90.00
7210656+	windscreen laminated with top tint	to order	202.80
7210656+	windscreen heated laminated	to order	298.80
7210656+	windscreen laminated Monte Carlo	2	310.80
	windscreens need to be collected
	top tint 25.00 extra, please ask
9235161	screw 5/16 UNF x1” csk for door hinge	42	2.00 *
	screw 5/16 UNF x1” transom (ss, set4) w- washer	8	3.00 *
	will supply 5/8” and 3/4” size
	no.6 raised head Phillips self tapping screw 5/8” (ss)	45 *	25p *
	no.6 raised head Phillips self tapping screw 3/4” (ss)	50 *	25p *
	no.6 cup plain screw trim finisher	38	35p *
	no.8 raised head Phillips self tapping screw 1/2” (ss)	40	30p *
	no.8 raised head Phillips self tapping screw 3/4” (ss)	40	35p *
	no.8 cup small plain screw trim finisher	30	40p
	no.8 pan head Phillips 5/8” door pocket (ss)	25	20p *
	no.10 pan head Phillips 5/8” (ss)	20	25p *
9056038	no.6 flanged Phillips screw black 5/8”	30	30p *
	no.8 flanged Phillips screw black 1/2”	17	25p *
	no.10 flanged Phillips screw black 3/4”	25	50p *
	no.6 spire U-clip small	50	20p *
	no.8 spire U-clip	52	22p *
	no.10 spire U-clip	50	25p *
	cup star screw trim finisher	7	20p *
9040105	1/4 UNF x 5/8” screws (set4 per seat)
	screw 1/4 UNF x1” pan head	4	50p *
	screw 1/4 UNF x1” csk for striker (ss)	1	1.00 *
	screw 1/4 UNF x1-1/4” csk for striker later (ss)	15	1.00 *
9131119	clip metal trim pad above hatch	11	50p *
9131180	clip door card	19	45p *
9131194	clip plastic RR/ side roof trim pad coupe	5	70p *
9143305	truss-head rivet wheel arch covers	11	20p
9143322	truss-head rivet finisher and parcel rail fix	186	15p
9143387	truss-head rivet finisher	200	15p
9178579		6
	screw 3/16 UNF x1/2” (ss)	31	40p *
	screw 3/16 UNF x5/8” (ss)	30	40p *
	screw 3/16 UNF x3/4” (ss)	10	40p *
	screw 3/16 UNF x5/8” special for lower FR grille	14	70p *

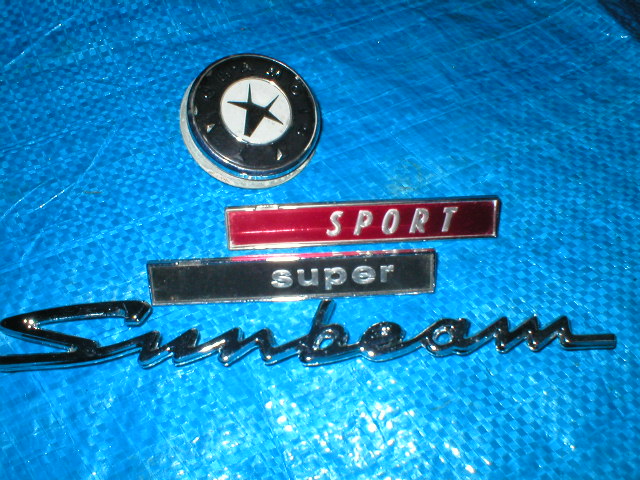

Badges, Clips etc.

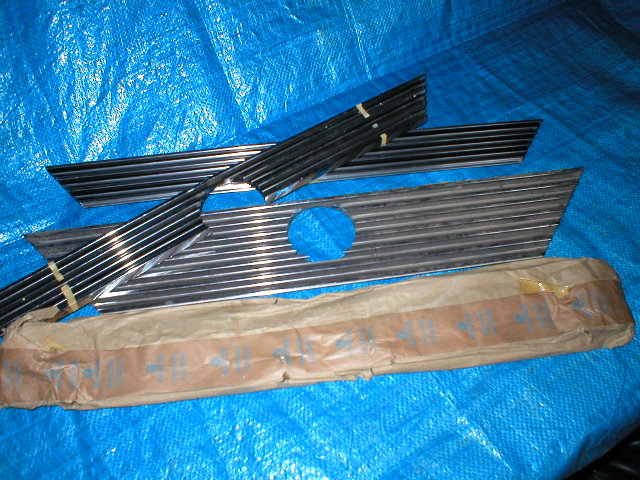

	front chromate grille with red centre MkI	ask
	“HILLMAN” silver letters with black backing for front panel	98	1.00
	glues onto Chrysler aluminium front panel
7096002	clip ext mldg 5/16” square, deLuxe or Stiletto	146	65p *
	also fits RR hatch surround mldg early type 20x reqd.
	also fits RR no. plate surround mldg 12x reqd. and rubbing strips
7096040	clip mldg, v.small Chamois (pack 100)	5	40.00
7096040-	clip mldg, v.small Chamois slide in to fit (pack 100)	4	15.00
7200427	rivet exterior trim early deLuxe	10	10p
7208009	clip nut ext side plastic mldg	132	35p
7208290	J-type spire captive nut RR waist finisher rear tag	5	1.00
7208291	spire clip interior waist finisher int. to door	49	25p
7211372	clip mldg 3/4” rectangular plastic Super	36	90p *
	“SINGER” pressed aluminium w- black paint s/h	2	12.00
7209007	“SUNBEAM” chrome script FR or RR panel	13	15.00
7200872	chrome bezel FR grille Chamois fixed (no badge)	2	18.00
	“SPORT” door badge plastic insert s/h good	1	12.00
	“MARK 2” door badge plastic insert NOS	1	10.00
	“MARK 2” door badge plastic insert s/h	2	6.00
7211680	“SPORT” rear wing rectangular side badge late s/h	1	18.00
9132400	clip for engine lid rubbing strips	3	65p
9034097	nut fastner for engine lid rubbing strips	695	05p
9034154	nut black plastic	130	05p
9096070	washer, rad stone guard	12	25p
9129586	clip mldg 5/16” 3-leg plastic MkIII deLuxe	100	50p *
9130018	clip D-shape large seat cover	6	30p
9130038	spire clip large	3	15p
9130041	clip waist seal outer (pack of 12)	4	5.00 *
9130042	clip rectangular seat cover	24	35p
9130135	clip rectangular seat cover	on order	35p *
9130728	clip waist seal outer thicker type (pack of 12)	2	5.00 *
9132412	stud tee deLuxe trim	10	25p
5221336	friction bush for most badges 3/32”	500	25p
9132946	friction bush for badge 1/8”	45	30p *
9132915	friction bush for badge 3/16” MkIII	9	35p *
9132999	spire nut RR interior waist finisher to body	9	25p
9178589	clip waist seal inner (pack of 12)	5	5.00 *
9620005	spire nut flat remote bonnet lock	84	20p
	clip RR hatch mldg MkIII, 8mm Volvo type	4	1.00 *
	retainer plastic nut FR grille MkIII	130	15p
9020168	J-spire cage nut, tank securing	4	1.20
9020244	spire nut no.8 sun visor or int mirror screw	15	50p *
	spire nut no.6 dashboard	19	50p
	Following are un-identified	ask
	plastic square with hole black	20
9129586	round plastic clip with slot deLuxe	75
	star rivet	11
	rubber washer	92
	plastic cap nut white	1
	metal rings
	rubber spacer-stop	10
	rectangular metal plate with hole	41
	rectangular metal plate with hole	10
7208008	mushroom clip white Chamois	95
9132412	ditto deLuxe ?	10
7178579	flat metal plate incl. stud anodized	9
	posi screw self tap v. small interior trim ?	164
	posi screw csk self tap small interior trim ?	54
	posi ch screw rear hatch lock etc. 1/8”x 3/8”	32
	ditto longer	27
	posi screw self tap larger	11
	csk screw 1/8” x1/2”	44
	cheese head posi screw self tap v. small 3/4”	290
	rivet 1-1/4” with split end	10
	ring dowel ?	4
	spacer small	9
	spacer medium	14
	bolt short 5/16 UNF	10
	pipe clips incl posi self tap screw
	pin ?
	posi cs screw 1/4 door lock mechanism	16
	O-ring	5
	screw 1/4 UNF x3/4”	6
	screw 1/4 UNF x1”	5
9096670	small washer	12

We are able to supply a full range of grommets and bungs to fit the Imp body shell. You will need to tell is the size and qty required as cars may vary. We buy trim clips, o-rings, grommets and similar items in bulk, so that we can offer them to Club members at near to cost price. We can add to the range for special requirements, please tell us what you need including the size. The types available are as follows.

open:

standard rubber grommet, e.g. for brake pipes and cables;

blank:

rubber to fill holes, can be perforated for pipes, cables etc.

PVC:

PVC blanking, e.g. for floor and sill bungs;

wiring:

Lucas soft rubber type for harness, hoses etc.

sleeve:

special, e.g. for wiper rack tube through bulkhead, may be hard to obtain.

Grommets etc.
B13	1/2” bung floor plastic self seal RR black	20	50p *
B16	5/8” bung floor plastic self seal RR black		60p *
7205084	1” bung floor plastic self seal FR-RR	3	70p *
BG16	blanking floor under seat	20	30p *
BG25	blanking for rear shelf or floor	30	30p *
BG32	blanking for heater-horn box top	32	50p *
L859341	Lucas type 1/2” cables FR, RR and wires	22	50p *
L859059	Lucas type 3/4” for horn cable and clutch pipe	7	70p *
L806443	Lucas type 7/8” clutch pipe RR	7	1.10 *
L863123	Lucas type 1” hydraulic pipes FR	1	1.00 *
L54944431	Lucas type 1-1/4” harness FR	8	65p *
7200504	L859061 Lucas type 1-3/8” hose FR+RR	19	1.60 *
9118503	L862217 Lucas type 1-1/2” harness RR	10	3.50 *
1045489	Lucas C5774A wiper rack 1-1/4” “volcano”	3	3.60 *
??	heater control cable through bulkhead
G10	0.4” cables FR+RR bulkhead		20p *
C551	1/2” fuel pipe FR	3	80p *
9117521	speedo cable thru rack support (use C551)	1	80p *
G14	9/16” fuel pipe FR		20p *
G16	5/8”	10	50p *
G22	7/8” acc cable through floor		30p
G32	1-1/4” open grommet	8	50p *
13988500	plug blank metal 1” RR parcel shelf	1	1.00 *
P25	plug plastic 1”
P32	plug metal 1-1/4”	1	1.20 *

Vinyl, Trim etc.
7065806	cushion cover FR coupe Red 192	1	15.00
7065905	cover seat RR coupe Red 192	2	15.00
7065998	cushion cover RR mid-Green	1	20.00
7066018	squab set ? RH Red 192	1	15.00

Californian, Chamois coupe and Stiletto
7209034	“CHAMOIS COUPE” wing badge black s/h good	1	15.00
	“CALIFORNIAN” wing badge s/h good (black)	1	15.00
7209390	screen surround finisher	10	2.00
7210587	ash tray for Californian	2	5.00
7211328	“STILETTO” rear side badge s/h needs re-paint	2	15.00
7211471	windscreen laminated	1	150.00
7211471+	windscreen heated laminated	to order	240.00
	windscreens need to be collected
	top tint 25.00 extra, please ask
9020046	spire nut	158
9129605/ 5240454	5/16” mldg clip (metal) Stiletto	184	65p

Van and Husky
7206355	RR lock body part only ?	1
7206356	striker nylon tailgate lower	19	5.00
7208572-3	Husky side window seals	ask
7206352	RR window seal	to order	18.00 *
7096149	black filler for above	to order	3.00 *
7206366	foam RR door aperture seal 4m	to order	28.00 *

Good used Items
	see s/h above plus the following
	capping assorted door etc. MkI-II	6	ask
	capping trim rear MkI-II	2	ask
	RR air vent s/h	4	7.50

Soft Trim
LS1	head lining saloon 3-bar	ask	78.50
LS2	head lining saloon 4-bar	ask	88.50
LS3	head lining coupe	ask	95.00
LS4	head lining Husky	ask	130.00
LS5	sun visor re-covered	ask	55.00
LS6	rear wheel cover (pair)	ask	38.00
LS7	FR+RR trim card covers (set4)	ask	69.00
LS8	FR+RR trim card covers plain (set4)	ask	43.00
LS9	h-brake gaiter	ask	17.00
LS10	carpet rear load area (2 pieces)	ask	40.00
LS11	carpet (10 piece set) basic	ask	75.00
LS11+	carpet (10 piece set) tufted	ask	130.00
LS12	re-upholstery of seats	to order

Interior trim kits can be obtained from:

LS: Lesley Smith Imp Interiors, Newport, Wales – contact details in Impressions magazine.
Mob: 07887 591634:
e-Mail: philgsmith@live.co.uk.

Head lining kits for Imp saloon, coupe and now Husky. Vinyl cut ready to fit, also rear panel plus four side pieces on coupe. Samples available on request. Contact to discuss as several options are available at various prices from £78.50.

Door card and rear side panel replacement vinyl covers (plain), black or red (maroon, green or blue at extra cost), £43 set of 4. Door card cover Super style with welded seams £69. Use to cover our non-warp trim cards.

Sun visors re-covered, £55 per pair.

Also available, vinyl covers for rear wheel arches, red or black, (maroon, green or blue at extra cost) £38 per pair.

Hand brake gaiter £17.

Please contact for other requirements including seat covers, full upholstery and carpet sets which are now available. <
