Engine and Auxiliaries including Cooling

New: Engine oil special deal, see Section 5.

All gaskets and hoses are available newly made. Pistons, rings, bearings and valves are also now available in certain sizes.

Silicone radiator hoses are now available from The Imp Club at £120 for the set of three.

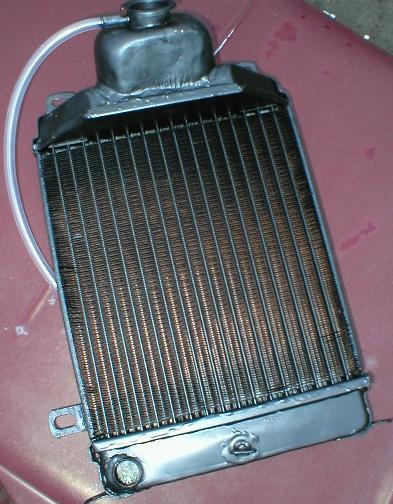

Note: We usually have a range of re-conditioned radiators in stock and also re-con water pumps. Rads and pumps are available on an exchange basis – there is a surcharge, re-fundable on return of the old part, and may be additional postal cost. Unfortunately the quality of some of the old ones returned means that there has been a price increase. Please try to return good ones!

Note: Re-conditioned items carry a replacement warranty for six months from time of sale. If you are not happy with what you have received, please contact us immediately and a re-fund or replacement can be arranged.

Competition or Fast Road
	See also used items below

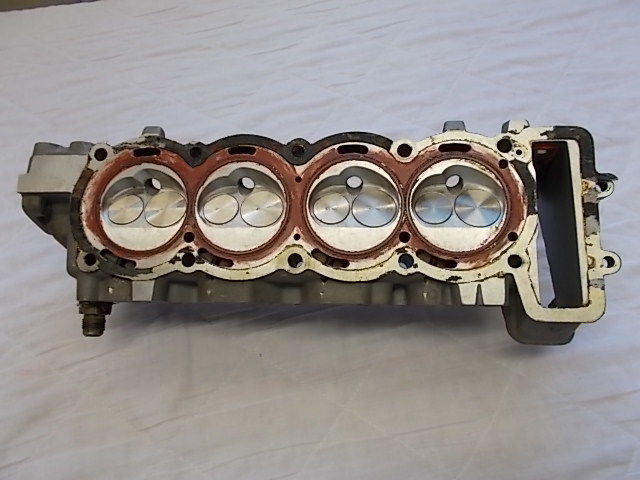

900ccHead	Ian Carter bv head, as new, w- solid carrier for R23 race cam	1	2000.00
	photos avail – easily modified for 998
900ccBlock	900cc bottom end – Ian Carter	2	800.00
BD080MOD	998cc-1040cc 75mm head gasket Chesman type	on order	140.00
MM14	998cc-1040cc 74mm head gasket	ask	120.00 *
	valve comp EN214 ? various odd sizes, ask	12	15.00
CTS1016	valve comp inlet EN214 ? 1.4”, 1.465”, 1.5” (set4)	7	72.00
CTS1017	valve seats for comp valves 1.4”	13	5.00
CTS1080	valve comp exhaust EN214 ? 1.125, 1.21, 1.25” (set4)	4	72.00

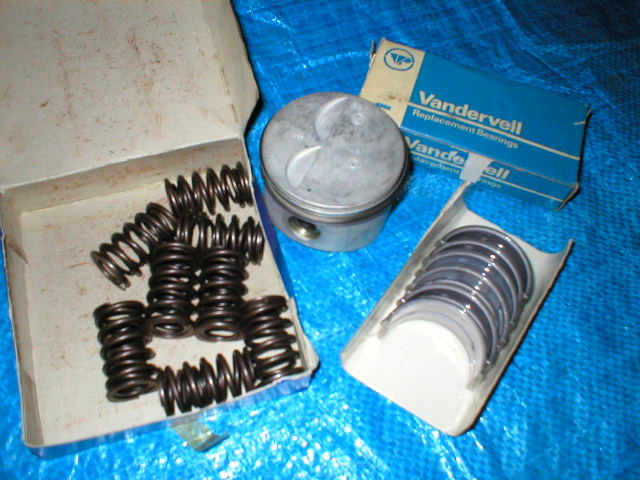

CTS1018	valve spring dual (set8)	ask	82.00
MM	guide bronze (set 8)	ask	132.00
20312	930 B1 type valve stem seal clip on (set4)	24	2.00
MM2	camshaft (R17, R20, R22, R23, GE3, M14, M15)	ask	312.00 *
MM18	camshaft M18 race	ask	336.00 *
MM9	steel follower buckets comp (set8)	ask	132.00 *
MM19	lead-copper main and b/e bearings	ask	60.00 *
CTS1075	9226013 timing chain comp spec Renolds Synergy (w- link)	6	34.00 *
CTS1034	sprocket cam multi-hole	to order	42.00 *
CTS1108	thermostat (71, 74 degree)	7	7.00 *
18521KR	74mm (1040cc) piston Hepolite w- rings and 5/8” pin	3	100.00
MM1	pistons, 72.5, 73, 74mm, 74.25mm, 75mm w- rings (set4)	ask	336.00 *
R2592	piston rings (set of 4x3) Deves 998	1	75.00
	rings 72.5mm single, ask	13	5.00
R2592.060	piston rings (set of 4x3) Deves 1040	4	75.00
JP.060	rings piston (set of 4x3) JP 1040	1	75.00
	rings 74mm single, ask	8	6.00
CTS1006	con rods lightened and polished with 3/8” HT bolts (set4)	1	180.00
CTS1006	con rods lightened with 3/8” bolts (set4)	1	140.00
VP91085+	main brg +020 Vandervell lead type	1	70.00
VP91085+	main brg +030 Vandervell lead type	2	70.00
CTS1064	Wills ring set, 2.9” or 3”	ask	132.00 *
	outer water gasket 20 or 27 thou thick	5	8.00
	b/e bolts comp spec (set 8)	ask	75.00 *
CTS1090	gasket manifold comp type	18	10.00
MM	wet liners	ask	180.00 *
CTS1005	crank shaft	1	200.00
IT1	large sump, front or rear rad	ask	ask
BB2	main bearing bolts high tensile 12.9HT (set6)	1	24.00
MM15	head stud set ARP w- special nuts	ask	108.00 *
MM16	b/e bolt set	ask	55.20 *
MM8	oil pump high capacity	ask	192.00 *
MM4A	alloy deep pulley, small alternator	ask	approx 50 *
MM4B	alloy deep pulley, large alternator	ask	approx 60 *
MM4C	alloy deep pulley, w-pump	ask	approx 70 *
MM4D	alloy deep pulley, crank	ask	approx 95 *

Head and Block
7010128	cylinder head 875cc MkI with guides and seats	1	120.00
7010031	cylinder head 875cc MkI with guides and seats	1	120.00
7010171	cylinder head 875cc MkII with guides and seats	1	290.00
71717533	cylinder head L6 complete	1	500.00
71717533	cylinder head L6 with guides and seats	1	300.00
20252400	cylinder head 930cc with guides and seats	2	150.00
900	900cc Imp bottom end (875cc +0.040) NOS	1	850.00

Valve Gear
7050151	spring valve dual sport (set 8)	1	45.00
7054090/1	guide valve (set 4)	3	40.00
5118032	seat insert inlet MkII	24	5.00
7100045	valve inlet MkI	41	4.00
7100046	valve exhaust MkI	11	4.00
7100047	cup valve spring exhaust or sport	31	1.00
7100049	spring valve std (set 8)	14	16.00
CEP	451.596 Terry's extra strong single valve springs (set 8)	ask	40.00
7100050	collar spring retain std	28	3.00
7100051	cotter-collet valve stem (set for 4 valves)		6.00
7100052	cam follower tappet std (set8)	1	80.00
7100308	cup valve spring inlet std	7	1.00
	shims available to swap	size?
7100465	valve inlet MkII	92	8.00
7100466	valve exhaust MkII and Sport	20	18.00
7100448	valve inlet Sport	8	15.00
9207019	circlip valve guide	120	15p
7100318	seal inlet valve stem std (set4)	14	1.00

Cam and Timing Chain
MM	7100362 cam bearings std (set6)	ask	50.00
MM	spacer plate for tappet block	ask	42.00 *
7100058	lock tab cam sprocket	59	1.50
7100066	pin spring chain tensioner	1	1.50
7100071	lock tab tensioner pivot	ask	1.00
7100072	damper plate chain	4	8.00
7100073	runner chain tensioner	1	4.00
9226013+	timing chain 06B-1 std Morse (w- split link)	1	24.00
	chain link 06B-1-26 std	2	3.00 *
7100173	washer thick for camshaft sprocket	14	50p
7100235	stud-dowel 1/4 x1-1/2” special cam brg cap	35	3.75 *
7100325	dowel 1/4” x1/2” cam carrier or manifold	28	30p *
9146201	dowel 1/4” x1” flywheel-clutch	29	60p *
	dowel 5/16” x3/4” block to bell hsg	22	60p *
	dowel 3/8” x1” crank or timing cover	59	65p *
7100411	camshaft 7010141 std	2	45.00
9040180	screw 3/8” x3/4” cam sprocket	81	1.00
	roll pin 1/4” x1.0”	8	25p
	solid pin 0.195” x1.5”	4	25p
	ring dowel hollow timing cover locating	13	2.50

Pistons, Rings etc.
7054041	gudgeon pin std IMProved (each)	8	15.00
7054041	gudgeon pin std (set 4, slight rust)	2	32.00
7054140	gudgeon pin Sport (set 4, slight rust)	2	32.00
	circlips available
7100107	piston w- rings MkI (no eyebrow, single)	1	30.00
PEP16336, 18111, 18542	pistons Hepolite std w- rings+pin (set4)	4	350.00
EP16392, RP10667	pistons BHB std w- rings+pin (set4)	1	350.00
7101030	piston std van bare	3	20.00
MM	pistons +020”	ask	312.00 *
PEP18111	pistons Hepolite +020” w- rings+pin (set4)	1	350.00
PEP19105	Hepolite pistons LC Van +030” w- rings (set of 4)	1	320.00
MM	pistons +040”	ask	312.00 *
PEP18111	pistons Hepolite +040” (set4) w- rings+pins	1	350.00
PEP18111	piston Hepolite +060” w- rings+pins (set4)	1	350.00
GPC9218	pistons 930cc w- pin (set4) no rings	1	245.00
16976	pistons Hepolite 998cc 72.5mm (set4)	1	350.00
RA18676	rings AP type 3 part oil saver (set of 4)	1	60.00
R936	rings piston (set of 4x3) Cords +030”	1	60.00
	rings piston SIM (set of 4x3) +030	2	60.00
RA18676	rings piston AE Hepolite or Apex (set of 4x3) +040	1	75.00
R937	rings piston (set of 4x3) Cords +040”	1	60.00
	rings piston AE Hepolite, Apex (set of 4x3) +060	1	60.00
	rings piston (set of 4x3) 998 std	as above	75.00
	assorted piston rings various sizes, ask	42	5.00
	oil control rings 930cc	56	5.00

Crankshaft and Bearings
MM	b/e bearing set various sizes	ask	60.00 *
MM	b/e bearings +010 lead-copper	1	60.00 *
7054045+	B4417SA b/e brg set AE Glacier +010”	2	65.00
7054045+	S1403SA b/e brg set AE Glacier +010”	1	65.00
7054046	b/e brg shell set AE Glacier +020”	4	50.00
7054047	b/e brg shell set +040" Vandervell	5	50.00
MM	main bearing set various sizes	ask	60.00 *
7054050	B4417SA main brg set AE Glacier	2	65.00
7054050+	M3328SA main brg set AE Glacier +010”	2	70.00
7054051+	main brg shell set VP 91085 +020	2	70.00
7054051+	main brg shell set +030"	4	60.00
7054051+	main brg shell set +030" VP 91085	2	60.00
7054052	main brg shell set +040"	4	50.00
7054056	thrust brg Gacier (pair) +005"	5	15.00
7054016	S4593L small end bush 875cc (set4)	1	30.00
7100017	H96/10R starter ring gear	5	50.00
tab-set	engine full lock tab set	9	18.00
7100105	b/e brg cap lock tab (set of 8)		4.00
7100178	main brg lock strap (set of 3)	35	6.00
7100184	thick washer for crank pulley	6	1.00
7100328	lock tab crank pulley	61	2.00
5220720	Woodruff key crank pulley	24	1.00 *
	Woodruff key crank long for sprocket	n/a
7100631	b/e brg cap (conrod) bolt genuine (set of 8)	10	10.00
7100631+	b/e cap bolt socket head 12.9HT (set of 8)	ask	12.00
7100869	flywheel lock strap (pair)	13	3.50
9040135	flywheel bolt 10.9HT (set4)	4	3.50 *
?	washer thick fire pump	33	30p
7100738	crank pulley	1	45.00
CR99149	repair sleeve for worn groove in pulley	to order	18.00
	bolt main bearing socket head 12.9HT (set6)	1	18.00 *
9003143	bolt special crank pulley	7	6.00

Miscellaneous

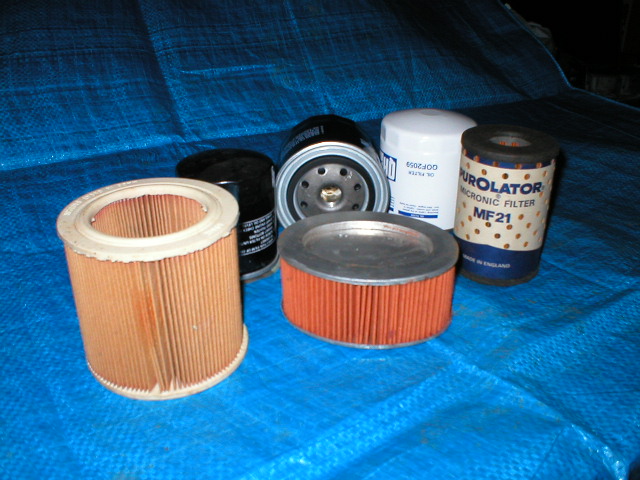

7050132	GFE110 oil filter paper element	98	6.00
7080141	pressure plate filter canister w- washer+seal	4	4.00

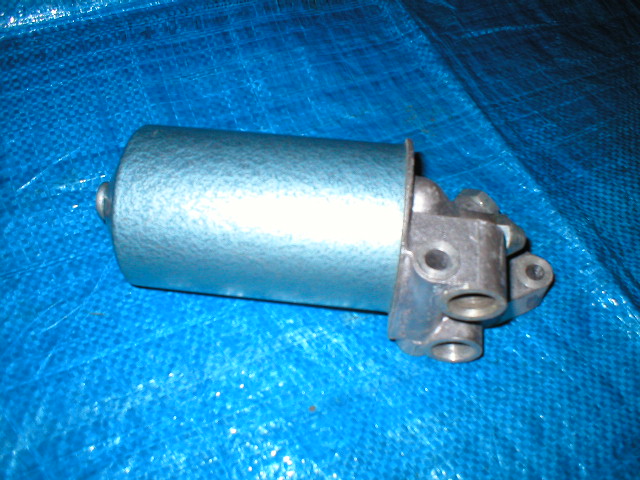

	oil filter canister Mopar blue w- internals	1	20.00
7095018	worm gear crankshaft	6	25.00
7100183	drive gear dizzy and oil pump		30.00
BS319	O-ring oil filler cap	6	1.00 *
9122127	O-ring seal pressure relief valve Nitrile early	30	30p *
9122127	O-ring seal pressure relief valve Viton early	30	1.00 *
	O-ring seal pressure relief valve Nitrile late	42	30p *
	Dowty seal pressure relief valve late IMProved	25	1.00 *
7100458	union SAE-JIC-8 3/4” oil drain to head	9	6.00
7100578-9	oil cooler hoses and unions 1/2 BSP (pair)	1	42.00
	ask for other fittings or lengths
7100704	elbow filter head to hose (pair)	1	47.00 *
	O-ring seal elbow to hose	44	30p *
9803179	blanking plug 1/8 BSPT oil way or manifold	14	1.00 *
7100593?	oil drain head to block flexy IMProved insulated	1	25.00
7100457	hollow banjo bolt 1/2 BSP	6	6.00 *
7100593?	oil drain flexy for 930 block IMProved insulated	to order	32.00
7100593?	oil drain 930 block original	1	10.00
	stud 1/4 x1-1/8” sump, will supply s/h	39	50p
9604173	stud 1/4 x2-1/8” tappet block	4	1.50
9604203	stud 1/4 x2-1/2” oil pump to block	48	1.50
9604203+	stud 1/4 x3” oil pump to block long	5	1.50
9605124	stud 5/16 x1-1/2” manifold	28	2.20
5200481	stud 5/16 x1-5/8” manifold longer or filter block	5	1.50 *
	stud 5/16 x1-3/4”	9	1.50
9605182	stud 5/16 x2-1/4” timing cover and thermostat	8	2.00
9605182SS	stud 5/16 x2-1/4” thermostat hsg stainless	2	4.00
	bolt 5/16 UNC x1-3/4” thermostat hsg stainless	8	1.00 *
9605223	stud 5/16 x2-3/4” timing cover	10	1.50
9605163	stud 5/16 x2” oil filter base	1	1.50
9605343	stud 5/16 x4-1/4” manifold clamp or Sport filter	8	2.70
9605343SS	stud 5/16 x4-1/4” manifold clamp stainless	5	4.50
	or sport oil filter block
9900413	stud 3/8 x2-1/8” block to bell hsg	5	3.00
1804556	oil filter spin on MkIII	10	7.00
PFP8157	oil filter spin on MkIII larger size	1	8.00
	crush washer alloy 5/8” x15/16”	31	50p
HB10+	head bolt set (5 long, 5 short) socket head 12.9HT	5	25.00 *
7100353	washer special hard for head bolt (set 10)	2	6.00 *
7095021	oil pump w- gear	1	120.00
7095021	oil pump no gear	2	90.00

Note: most gaskets have now been re-manufactured and are similar to or better quality than the original. 998cc and 1040cc head gaskets also available.

Gaskets and Seals

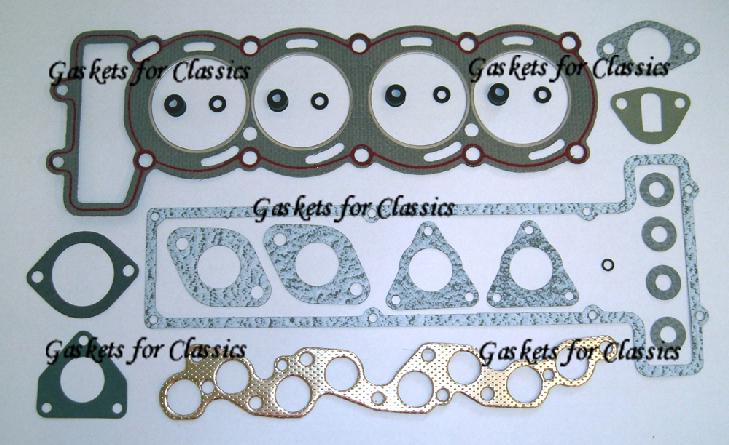

7050109	gasket set full top end 875-930cc w- grey gskt		27.00 *
VEF021	gasket set bottom end (no hockey sticks)	1	19.00
VEF021+	gasket set full bottom end w- hockey sticks	1	27.00
7095000	gskt timing cover (pair)	64	2.00
7100061	gskt cam cover cork or card	68	5.00
7100062	gskt oil filler to cam cover	11	1.00
7100081	gskt oil pump to block	36	1.20
7100158	gskt hose to block inlet	45	50p
7100313	gskt manifold std (metal)	21	5.00
7100492	gskt manifold sport (laminate)	26	5.00
7100336	gskt oil filter base to block	14	1.20
7100357	seal dipstick	21	50p
7100367	head gasket Payen or Brovex NOS incl O-ring	8	15.00
7100367+	head gasket std grey type fits 930 incl O-ring	10	15.00
7100416	gskt thermostat hsg	31	1.00
GPF8880	gskt thermostat hsg 930 type	110	50p
	also fits Imp!
7101259	seal crank rear “hockey stick” (pair)	16	9.00
7101336	gskt sump	9	7.00
9077674	Dowty seal 3/4” oil drain union to head	15	1.00 *
9077675	Dowty seal 1/2 BSP bottom of oil drain or sump plug	45	1.00 *
	core plug early 5/8”	3	1.50 *
9101824	core plug 11/16”	on order	1.50 *
9107005	O-ring head gskt	100	15p *
9107026	O-ring timing cover	12	30p *
9107026+	O-ring timing cover Viton	15	60p
9102085	oil seal crank pulley end	11	4.00 *
5221391	oil seal rear for 930cc engine	5	8.00 *
	oil pickup 930cc	1	6.00
7080139	washer for filter canister spring	10	5p *
7080142	BS843 O-ring 3” for filter canister	31	1.00 *
7080143	BS204 O-ring 1/2” for filter canister	48	30p *

Cooling System
7100351	fan belt (1100, 1113, 1125, 1133 or 1150mm)	23	5.50 *
7100351+	cogged fan belt for alternator (1100, 1113, 1125, 1133 or 1150mm)	10	6.50 *
7101217	thermostat (82 or 88 degree) w- gskt	16	7.50 *
9214001	drain tap block or 3-way	3	10.00 *
SilHose3	radiator hoses, silicone, set3 classic black	5	125.00
Jub6	worm drive clips set6	4	10.00 *
	worm drive clips special for silicone hoses available	ask
7100445	hose 944 pump to block	17	15.00
7100643	union 3/8 BSPT hose tail to head	5	6.00 *
	T-piece 5/8” replaces Sport banjo	4	6.00 *
	plug blanking 3/8 BSPT water union	3	2.50 *
7100829	Woodruff key water pump	30	1.00 *
7103229	hose 942 radiator top	13	15.00
7103230	hose 943 radiator bottom	11	15.00
7103552	hose 2382 pump to 3-way bypass short IMProved	1	12.00
7103295	bypass hose behind radiator 1m	2	4.00
7103550	3-way pipe bleed junction w- tap	5	25.00
7103550	3-way pipe bleed junction w- tap +bkt	1	30.00
Join1	hose joiner, 5/8” x2” aluminium	5	2.50
Jubilee	hose clamp BZP 22, 25, 30, 35, 40, 45, 50 and 55mm	23	1.50 *
Jub16-25	hose clamp 16-25mm	20	1.00
	also in stainless, approx 2x price, please ask
JubSet	worm drive clips engine set	on order	22.00 *
JubSSet	stainless worm drive clips engine set	1	45.00 *
1217377	drain tap radiator plastic w- seal	56	3.50
	O-ring seal for above	4	30p *
7102492	radiator cap std 7lb short	13	7.00 *
7102990	radiator cap early 4lb short	2	4.00
	radiator-header cap blank non-pressure	3	6.00 *
CTS1123	HE radiator recon exchange	ask	225.00 *
WR1MkI+	MkI rad recon HE exchange	ask	225.00 *
WR1van	Husky or Van rad recon exchange	1	195.00 *
WR1van+	Husky or Van rad recon HE exchange	ask	225.00 *
	exchange surcharge £30 refunded on return
9000221	Acme screw and U-spire nut rad fitting (early, set3)	2	6.00 *
	U-clip and screw (later, set3)	ask
7102264	gaiter fan shroud rubber	12	30.00
7102265	clamp wire rad shroud w- bolt	1	5.00
9351062	screw no.6 blunt 3/8” (ss) rad cowling	25	20p *
	no.6 self tapping screws 3/8” (ss) rad mesh	50	20p
7050206	WP1reman water pump new re-manufactured	to order	ask *
7050206	WP1new water pump new old stock (NOS)	2	160.00
7050206	WP1 water pump recon exchange	on order	110.00 *
	exchange surcharge £30 refunded on return
WP1new930	water pump new 930 complete	1	75.00
WP1new930-	water pump new 930 (outer only)	2	30.00
7050162	WPRK1 repair kit w-pump (brgs, seals, gskt, keys, circlip)	6	25.00 *
7100136	gskt water pump	27	1.00 *
9198018	6202 bearing w-pump	2	6.00 *
9294921	circlip brg w-pump	10	50p *
5046315	NB037 seal w-pump		6.00
7100358	cooling fan white	11	15.00
7100729	impeller w-pump MkI 5-1/4”	1	25.00
	bolt set w-pump (4x bolts, nuts washers)	8	4.50 *
	bolt set pump bkt (4x bolts, nuts washers)	2	4.50 *
7100826	pulley std for w-pump 4-3/4”	1	25.00
7100836	bracket w-pump alloy	2	12.00
7101200	pulley std for w-pump 5-1/4”	1	25.00

For grommets, see under Body.

Heating
7205232-3	heater hose J20R3 10m x5/8” (sufficient for both sides)	4	48.00 *
	5/8” hose available to order per foot	30	1.60
TX1 **	heater control valve in-line IMProved	2	15.00 *
7210503	hose 90o elbow for heater valve rubber	2	6.00
7210503+	hose 90o elbow for heater valve silicone	6	9.00 *
7211207	heater matrix MkI may also fit MkII	1	50.00
7105352	air ducting 82mm (per metre)	ask	25.00 *
	wire clamp for above	to order	2.50 *
7210645	control cable outer only	1

** To fit the TX1 valve: put the valve in the hose so that the cable casing will fit the clamp. You can pass the inner wire through the hole in the metal piece with it on the lever of the valve and then clamp it in place using a nipple.
For more ideas take a look on the Forum.

Aluminium Castings and Related Misc.
7100346	engine mounting bush, re-man	8	36.00
7100346+	engine mtg bush pressed into housing	2	45.00
5220692	bolt 5/16 x7/8” mtg bush to transom
	sump 930 type	1	15.00
7010105	housing cover thermostat	10	24.00
9801043	plug sump 1/2 BSP	20	3.50 *
9801043	plug sump 1/2 BSP drilled for wire	3	3.50
	plug sump 1/2 BSP magnetic IMProved	7	10.00
	plug 1/2 BSP tapped	6	4.50
9077102	copper crush washer 1/2 BSP	35	1.20
5220713	Dowty seal 1/2 BSP for sump plug IMProved	see above	1.00 *
7100574-7	bracket full set for oil cooler	ask	35.00
7100577	retaining bkt hoses to sump	25	5.00
9803112	blanking plug 1/4 BSP block RR early or FR late	7	4.00
9803115	blanking plug 1/4 BSP block RR late	5	4.00
9804420	blanking plug 1/4 BSP block FR early	5	4.00
5220712	copper crush washer 1/4 BSP	18	1.20 *
5220713	copper crush washer 1/2 BSP sump plug	22	1.20 *
9806422	blanking plug timing cover 1/4 BSPT	2	1.00

Good used Items
18521KR	74mm pistons (3 single)	3	50.00
	70mm pistons 11/16” pin (set4)	1	150.00
	72.5mm pistons 5/8” pin (set4)	1	150.00
	72.5mm pistons 11/16” pin (set4)	1	160.00
	998 piston single	8	35.00
PEP18111	piston Hepolite +030” w- rings+pins nearly new (set4)	1	275.00
PEP18111	piston Hepolite +030” good w- pins (set4) will need rings	1	100.00
	Van radiator, late, very little use	1	120.00
CTS1034	sprocket cam multi-hole	1	15.00
	Sport exhaust valve	10	5.00
	Sport inl. valve little wear	4	10.00
	crankshaft re-ground +010	1	100.00
7010164	cam cover	3	13.50
	3-way bleed valve	3	15.00
7100644/5	water union sport hose dual with banjo	1	15.00
