Electrical Components

Note: Most other electrical service components for both standard road and competition cars can be obtained new to order. Prices may vary. I try to ensure that electrical parts are good quality British NOS where possible. Beware of cheap imports sold on the Internet!

Foam lamp gaskets are available again, correct colour and specification made using original Lucas tools. So a lot cheaper than those on the Internet because we own the original tooling. Lenses for front and rear lamps are also available.

Special Orders
	wiring harness-loom (need details of car)	ask	c.390.00
123	123 Ignition distributor	ask	282.00 *
Denso	Denso alternator	ask	144.00 *

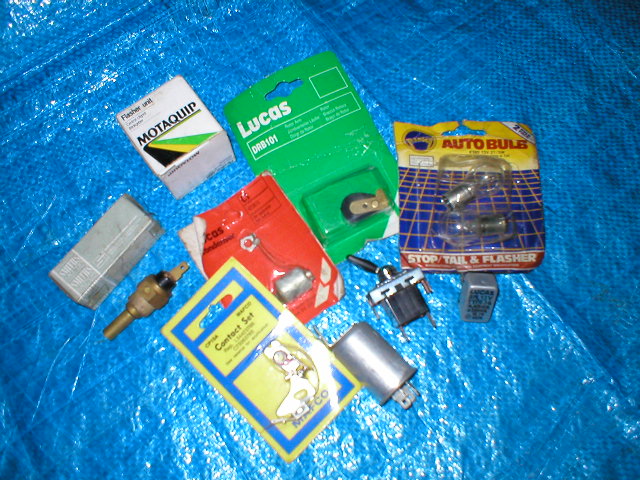

General
1205552	I52720 temp sender red top for gauge	10	11.00 *
1205576	voltage stabiliser BR1300/01 early lozenge shape	2	18.00
1801197	voltage stabiliser BR1307/00 rectangular	1	18.00
1801197	voltage stabiliser BR1307/00 rectangular (solid state)	3	21.00 *
7080467	voltage stabiliser BR1303/20 MkIII	1	18.00
7080467	voltage stabiliser BR1303/20 MkIII (solid state)	2	20.00 *
7080224	L34688 L34901E 106SA ind cancel switch MkI MkII	4	24.00
	cancel pawl actuator (special fitting)	2	6.00
7080481	printed circuit board (PCB) MkIII	1	18.00
7105069	TS2300/2/223 temp sender black top early Smiths MkI	4	30.00
L37563	control box Lucas RB340 for 22A dynamo	to order	25.00 *
L37568	control box Lucas RB340 for 25A dynamo	to order	25.00 *
L227541	brush set C40 dynamo		4.00
L54219368	brush spring and lucar set for 16ACR alternator	3	5.00
L060053	fan for alternator	1	6.00
7100121	support bkt dynamo rear	4	2.00
19105401	bolt set alternator	6	5.00
7100380	I50530 oil pressure sender 30-50 kPa	25	10.00 *
7100257	adjusting bkt dynamo long early	3	1.50
7100298	adjusting bkt dynamo medium	7	1.50
7101097	adjusting strap alternator short	3	1.50
7105103	cable battery +ve earth MkI round terminal	2	5.50
L54950210	cable battery -ve earth round terminal	3	6.00
7105153	battery cables +ve, -ve, 9” or 12” round terminal insulated	to order	5.50
7080492	cable solenoid to starter	ask
7105174	earth strap 6”	4	6.00 *
	earth strap 9”	5	6.00
	earth strap 11”	2	6.00
7102187	1216377 sender fuel tank early genuine	4	35.00
7080530	sender fuel tank late	on order	40.00
	fitting parts also available
1800399	I51610 L34619 switch brake light	20	13.00 *
L35020A	flasher unit FL5 42W early type round	on order	9.00 *
L35048A	flasher unit 8FL 44W (3.6A type 36) late rectangular	1	9.00
L35048A	flasher unit 8FL 47W Lucas rectangular	1	9.00 *
L35049A	flasher unit 8FL 50W (type 42) late rectangular	3	6.00 *
L251108	brush set M35G starter motor		6.00
	insulator set M35G starter motor	3	3.00
L54252212	TLB112 Bendix pinion 9 teeth	5	24.00 *
7208332	courtesy light door switch (Linread 1.031.773)	46	10.00
	heater fan motor only	1	20.00
LRD100	C40 L22715 dynamo 22A NOS	2	65.00 *
LRD102	C40-L L22763 dynamo 25A long type	ask	90.00 *
	C40-L item is an exchange unit, your old one will be re-conditioned
LRA100	16ACR alternator NOS	1	50.00
LRA100	18ACR alternator 55A or 75A	to order	65.00 *

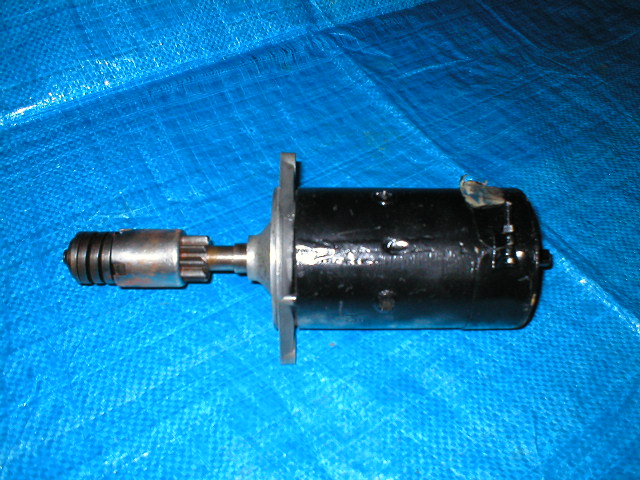

LRS102	M35J starter motor 9 teeth	to order	86.00 *
LRS311	M35J+ starter motor pre-engaged 9 teeth	to order	130.00 *
	starter motor bolts w- nut+washer (pair)	5	2.50 *
LRW110	Lucas wiper motor 14W 2 speed (late, no gear)	to order	60.00 *
7080444	drive gear 14W 105 degree	1	25.00 *
L76464	2ST starter solenoid budget (early)	to order	33.50 *
L76766	SRB325 4ST starter solenoid Lucas (late)	2	18.00 *

Ignition
L40905	Lucas 25D4 distributor complete MkI	1	100.00
L41122	Lucas 25D4 distributor	1	100.00
	clamp dizzy	1	8.00
L54413073	weights and springs dizzy 25D (pair)	1	5.00
7100218	vacuum tube dizzy, incl rubber connectors		6.50 *
DC101	dizzy cap MkI MkII	9	9.00 *
DC106	dizzy conversion cap	6	11.00 *
DC108	dizzy cap MkIII	9	7.50 *
K.22438	carbon brush and spring for DC101	2	3.00
L420620	dog dizzy drive	1	10.00
7100078	pin 1/8” x7/8” oil pump to dizzy drive	24	30p
9107066	O-ring dizzy or MkI breather	51	30p *
9107091	O-ring dizzy	46	25p *

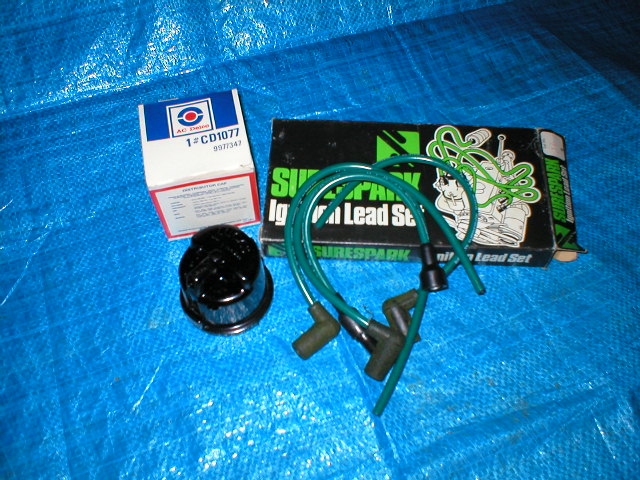

HT5	H.T. lead set GHT116 early type screw in	5	16.00
	H.T. lead suppressor (if required)	to order	6.50 *
HT5+	H.T. lead set late type push on	1	17.50 *
L54413549	L.T. lead for 23D-25D dizzy	16	6.00 *
9227025	Champion N9Y sparking plug set4		10.00 *
RN9YC	Champion RN9YC sparking plug	2	2.50
RN7Y	Champion RN7Y cool sparking plug set4	1	10.00
N60Y	Champion N60Y sparking plug set4	1	10.00
AG901	Autolite AG901 racing plug set4	1	10.00
BP5ES	NGK BP5ES sparking plug set4	2	10.00
92270215	NGK BP6ES sparking plug set4	5	10.00 *
BCPR6ES	NGK BCPR6ES sparking plug set4	1	12.00
B8ES	NGK B8ES sparking plug (race) set4	2	12.00
B10EV	NGK B10EV sparking plug set4	1	18.00
7100863	dust cover rubber “tutu” spark plugs (set4)	2	4.00
DLB101	ignition coil std	2	23.00 *
DLB105	ignition coil sport Lucas	on order	27.00 *
DLB110	ignition coil sport (requires 1.5 Ohm ballast)	1	27.00
EE5001	ignition coil sport Elta VXPro	2	27.00 *
CD101	condenser early	21	4.00
CD108	condenser late w- lead	42	6.00
DCB104C	condenser late genuine Lucas	3	8.00
CS101	contact set early 25D	23	4.00
DSB101C	contact set early genuine Lucas	3	6.00
CS108	contact set late 45D	52	4.00
DSB108	contact set late Lucas	3	6.00
DSB108C	contact set late Lucas	1	6.00
	screw for points fitting	11	50p
RA101	L400051 type rotor arm early	73	4.00
DRB101	rotor arm early genuine Lucas	3	6.00
DRB101C	rotor arm early genuine Lucas	1	6.00
RA110	rotor arm late	35	4.00
DRB104C	rotor arm late genuine Lucas	1	6.00
L54412154	25D4 base plate Lucas lower	1	10.00
L54419792	25D4 base plate Lucas upper	1	10.00

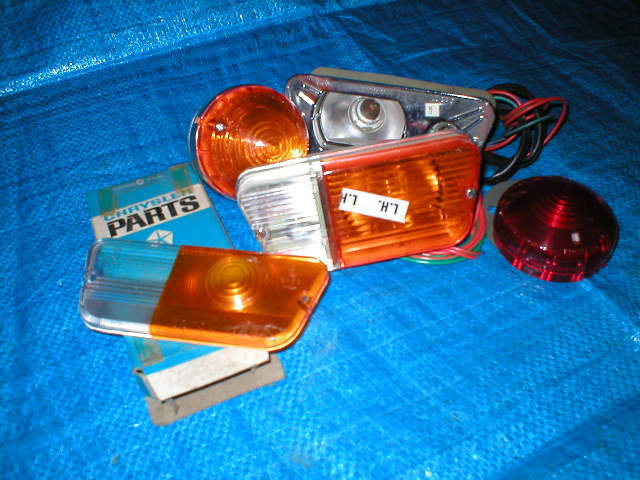

Lamps and Lenses
FOAM8	foam lamp gasket car set8, state which		15.00
FOAM4	foam lamp gasket car set4 MkI-II L717	10	8.50
FOAM4+	foam lamp gasket car set4 MkIII L792		8.50
L57098	reflex reflector RER22 L841 w- chrome MkI-II (pair)	1	16.00 *
	screw tapping no.6 x1/2”		*
5039493	L2200 foam gasket inner lamp type L691-2		1.75
5039494	rubber joint rear for L691-2	20	2.00
	screw kit (2x nuts +screws) for L691-2	to order	8.00
7105128	lamp assy L719 number plate NOS	5	24.00
7105128	lamp assy L719 number plate (re-furb)	4	15.00
L578218/ 4220	glass number plate lamp	5	5.00
L574825/ 3915	glass and cover only number plate Sport	1	6.00
7105436	interior lamp assy late	1	25.00
7105436	interior lamp base only	1	17.00
7080196-9	front lens set L717 early RH-LH (one side)	46	14.00
7080197/9	front indicator lens L717 early RH only	8	8.00
Screw717	no.6 screw 1-1/2” L717 (pair)	21	30p *
7105022-3	side-indicator assy L717 early RH-LH (pair)	8	150.00
	Note: lamps for Imps only, very hard to get now
L3638	back gasket foam for L717	10	1.75 *
L3637	inner gasket foam for L717		2.40 *
L6307	back gasket foam for L792 (MkIII or kit car)	10	1.75 *
L6308	inner gasket foam for L792 (MkIII or kit car)		2.40 *
75066180	front side-ind lens L792 genuine Lucas RH only	19	14.00
75066180-1	front side-ind lens L792 RH-LH (pair)	4	30.00
	side-indicator lens export all amber-clear L792 LH only	6	14.00
Screw792	no.6. screw 1” L792 (pair)	12	30p *
	no.6 spire nut lamp screw to body (pair)	32	25p *
71271994	side-indicator assy L792 LH only	1	95.00
71271997	side-indicator assy RH-LH L792 (black, kit car?)	3	75.00
	Note: from Mar'1967, lamps for Imps only, hard to get now
7080523	lens rear L691 screw on amber-clear	25	9.00 *
7080522	lens rear L692 screw on red	9	9.00 *
L691	rear amber indicator assy L691	to order	25.00 *
L692	rear red stop-tail assy L692	4	25.00 *
71263096-7	Wipac 266 rear red-orange-clear lamp assy	23	18.00
75062891/2	lens Wipac 266 rear push on red-orange-clear	26	7.00
SB7014	7” sealed beam unit 37.5-60W RHD or LHD (pair)	to order	35.00
SB7014	7” sealed beam unit 37.5-60W RHD	3	15.00
B380	bulb stop-tail 21/6W	40	60p *
B382	bulb indicator 21W	40	75p *
B989	bulb side 5W or 6W	10	1.20 *
122384	bulb holder, Stiletto dash, blue	1	1.00
5220069	holder warning bulb	4	1.50
	7” headlamp Wipac or Lucas H4 halogen (pair)	to order	60.00 *
	7” headlamp budget H4 halogen (pair)	to order	30.00 *
	5-3/4” headlamp Wipac or Lucas H1 or H4 inner or outer (pair)	to order	60.00 *
	5-3/4” headlamp budget H1 or H4 inner or outer (pair)	to order	30.00 *
7080151	screw metal headlamp adjuster	60	60p
	nut plastic headlamp adjuster	66	35p
L60600427	screw-adjuster trim kit h-lamp (one side)	2	5.00
	headlamp fitting components and bowls all available	to order	ask
B254	bulb courtesy festoon, 5W	9	1.20 *
B273	bulb reversing festoon, 21W	8	1.20 *
B207	bulb number plate 6W
BA7S	bulb dash 2W bayonet	13	1.20 *
B987	bulb instrument 2.2W screw (early)	22	1.20 *
B504	bulb instrument 3W capless (late)	20	60p *
H4	bulb halogen	10	2.50
C305	earth tag connector dual	8	5.00 *
C309	bullet connector 4.7mm (to solder)	50	30p *
C311	bullet connector sleeve (single)	100	25p *
C312	bullet connector sleeve (dual)	23	30p *
9020046	spire nut rear lamp fix	158	25p
	lucar connectors coil or solenoid	10	10p
	lucars other various
	spade connectors various
	fuses various
	in-line fuse holder	4

For grommets, see under Body.

Good used Items
7080481	printed circuit board (PCB) MkIII good s/h	5	10.00
	Lumenition complete for 25D4	1	ask
	interior lamp assy good	3	15.00
