Brakes and Controls

Note: Most brake service parts are available new to order. Front and rear wheel cylinders and repair kits are in stock. Master cylinders are available in a range of sizes for servo or non-servo cars. We only stock the best types, not the cheapest! New standard and Goodridge style hoses are available for all requirements.

Despite recent price increases, we source these items in bulk so that we can pass on savings to Imp Club members.

We also stock all brake pipes in salt resistant Cunifer-10 material (10:90 nickel:copper). Clutch and fuel pipes are available in the same material. These can be made up to length for special orders, e.g. Bond 875. All components are supplied ready to fit.

Our modern high friction brake shoes are an alternative to servo or disc brakes. We can also source front disc conversions if desired.

Note: We re-condition items such as brake shoes and provide a variety of friction materials, please ask. Re-conditioned items carry a replacement warranty for six months from time of sale.

Because of shortage of good Imp rear shoes, we may supply sets which are a mix of Imp and Allegro shoes. The Imp shoes with the rectangular slot must be used for the hand brake transfer levers, the Allegro shoes have a larger irregular shaped slot. Beware some Internet sellers do not know the difference!

Servo or Disc Brakes
RH12	front disc conversion kit for 12” wheels (pair)	ask	395.00
RH13	front disc conversion kit for 13” wheels (pair)	ask	395.00
RM3	front disc conversion kit (pair)	ask
AHV550	brake servo MkIIa/b recon. exchange	ask	c.450.00 *
SP2230	servo repair kit for Powerstop AHV550 MkIIa 5-1/2” 64049127	to order	50.00 *
SP2228	servo repair kit for Powerstop MkIIa 7”	to order	50.00 *
SP2625	servo repair kit for Powerstop AHV550 MkIIb 5-1/2”	ask	90.00 *
LV15069	Delphi servo non-return valve in-line	1	10.00

General Brake Components
	screw 10-32 x5/8” for plastic reservoir
9163306	pipe 1/4” to reservoir 36” long AN-4	2	7.50
	bend and trim to length
9166011	rubber connector for reservoir pipe 1/4” x2”	28	50p
NA1113	mini hose clips BZP for above	see carb	50p *
7080024	transfer lever h-brake	20	10.00
7080025	SP2861 clips and dust cover rear cyl (axle set)	3	12.00 *
7080026	seal front cyl to back plate (set4)	3	50p

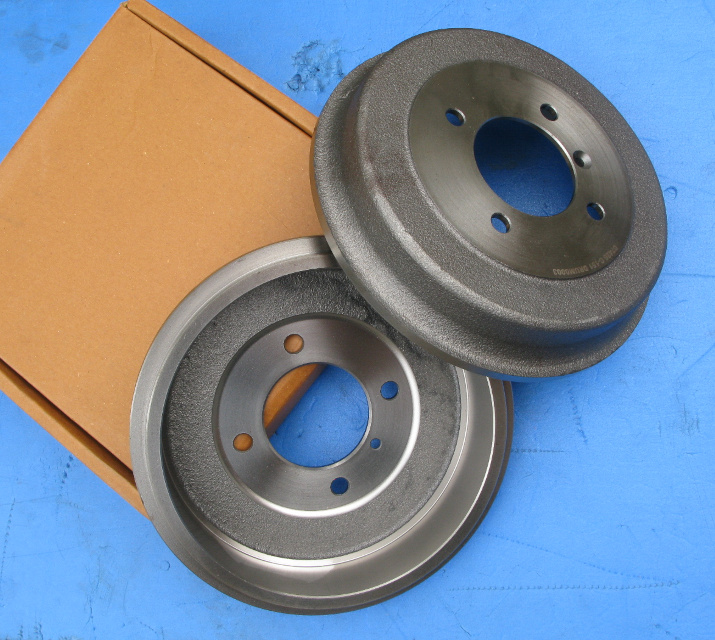

7102055	brake drum newly made	on order	75.00
7102114	back plate front RH only	5	25.00
9114081	screw 1/4 UNF x1/2” drum retain early, stainless	21	1.00 *
9114081	screw 1/4 UNF x1/2” drum retain late	32	60p *
9114081	screw 1/4 UNF x1/2” drum retain, stainless	4	1.00 *
7102146	ratchet h-brake	9	7.50
7102147	pawl h-brake (hardened steel)	6	1.50
7102148	spring h-brake operating button	1	2.00
7103153	spring h-brake operating button	1	1.50
7102149	rivet h-brake lever	29	60p
7102152	grommet dust seal h-brake lever to floor	11	10.00
7102153	trunnion h-brake cables to lever	2	4.00
9067056/216	washers special for trunnion (pr)	2	50p
7102154	nut h-brake cable tensioner (pr)	2	9.00 *
7102155	spring h-brake cable tensioner (pr)	43	4.00 *
9144012/9830405	clevis pin h-brake cable w- split pin	15	1.00 *
7102375	spring pedal return	1	7.50
7080169	push rod master cyl complete IMProved	4	8.00
7102250	shaft pedal box	1	3.00
	clevis pin and split pin for pedal	5
NB+SLI312	clevis pin and safety clip for pedal	3	2.50
7102134-5	cable h-brake RH-LH early (pair)	2	30.00
	screw 4BA for cable bkts (set4)	5	1.80 *
7103572	cable h-brake late (pair)	10	25.00
7103572C	cable h-brake Clan (7-1/2” shorter, pair)	3	30.00
7103572G	cable h-brake G15 (10” shorter, pair)	1	30.00
9166235	sleeve for pipe	9	10p
9204021	circlip for master cyl	40	25p
9003045	bolt 5/16 UNF x3/4” back plate FR to stub axle w- nut washer (set6)	2	6.00
7102050	bolt 5/16 UNF x7/8” back plate RR to arm w- washer (set8)	2	8.00
7102253	pedal rubber MkI-II (pair)	10	14.00
7103499	pedal rubber MkII-III (pair)	10	14.00
GS294	brake shoes std front (axle set)	6	24.00
GS282	brake shoes std rear (axle set)	3	24.00
GS282	brake shoes std rear (axle set) asbestos free	8	26.00
CTS1302-3	rally spec shoe VG95 set FR or RR	ask	45.00
	not for road use and special procedure required
SUP5	snail cam adjuster kit front (set4)	ask	57.00
64271022	brake adjuster rear	5	12.00 *
7080011	SP1023 steady rest hold down kit front	2	8.00
	for front, use rear kit instead
7080014	spring front brake pull off (set4)	9	6.00
7080015-6	spring rear brake pull off (set4)	20	8.00 *
7080244	SP1006 steady rest hold down kit front or rear	9	6.00
7102178	master cylinder 0.625” std	4	42.00 *
7102177	master cylinder 0.7” servo or disc brakes	4	42.00 *
7102177	master cylinder 0.7” no brand	1	30.00 *
64068956	master cylinder 0.75” larger disc brakes or kit car	1	42.00 *
SP1963	seal kit 0.625” m-cyl	5	10.00 *
SP2102	seal kit 0.7” m-cyl Sport	8	11.00 *
SP2465	seal kit 0.75” m-cyl special	1	11.00 *

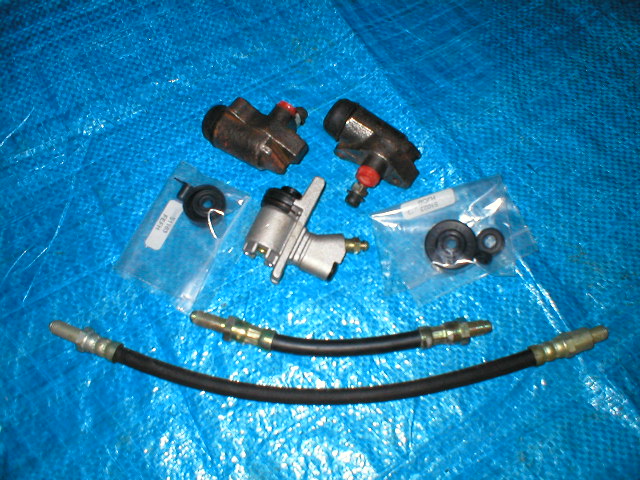

7080280-1	wheel cylinder FWC front 0.7” LH-RH	32	12.00 *
	new LPR type, this is the correct size
7080281	wheel cylinder FWC front 0.7” Girling RH only	2	15.00
	genuine Girling NOS
64675937-8	wheel cylinder FWC front van 0.625”	11	10.00
7080282	dust seal front cyl	11	1.00
64673476	wheel cylinder RWC rear 0.75”	4	12.00 *
K.28714	bleed nipple cyl 3/8 UNF	36	1.20 *
SP2027	seal kit rear wheel cyl (each)	8	3.00
SP2174	seal kit front wheel cyl (each)	44	3.00
SP2295	seal kit front cyl van (axle set)	3	8.00
64047352	hose flexi rear AN-3 w-fittings (pair)	5	14.00 *
7103995	64047371 hose flexi front AN-3 w- fittings (pair)	4	18.00 *
BHS2F	hose stainless braided front AN-3 (pair)	2	44.00 *
BHS2R	hose stainless braided rear AN-3 (pair)	2	26.00 *
	bridge pipe, FR brakes copper	15	5.00
	bridge pipe, RR brakes	2	6.50
	brake pipes full set cunifer AN-3 threads	1	50.00
	ditto for servo (Sport)	to order	50.00
	individual pipes also available, please ask	to order
BPN12	saddle clip pipe	19	1.00 *
	P-clip pipe	8	60p *
	P-clip pipe larger	20	60p *
	union nuts pipe male, female, AN-3 for 3/16” pipe	113	50p *
	male-male connector (Sport with servo) AN-3	4	2.00 *
	male fitting AN-4 for 3/16” pipe	4	1.00
	3-way junction brass AN-3		6.00 *
155022	4-way junction brass AN-3	1	12.00 *
	washer copper crush AN-3 for brake hose	30	50p *

* Quentin shows how to fit the rear shows (on his Enfield 8000 Electric City Car) https://www.youtube.com/shorts/RHFpyDPzEeg.

Disc brake conversion kits can be obtained from:

Robin Human – Intelligent Metals on e-Bay
